Especificaciones:
Processor / System Bus
1 x Socket SP5 (LGA 6096)
4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
AMD EPYC™ 9004 Series Processors (Air cool with STD HSK up to 400W)
Memory
24 x DIMM slots
DDR5 4800/4400/4000/3600 RDIMM/ 3DS RDIMM
1DPC up to 4800
2DPC up to 4000(1R+1R)
2DPC up to 3600(1R+2R)/ (2R+2R)
Maximum 6144GB
* Refer to support page for more information
Expansion Slots
Up to 5 PCIe Gen5 slots + 1 OCP3.0
2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
1 x PCIe Gen5 x8, LP
1 x OCP 3.0 Slot ( (PCIe Gen5 x16)
Storage
Storage Controller : CPU Integrated
Optional kits Controller :
Broadcom Mega RAID 9560-16i
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
Drive Bays

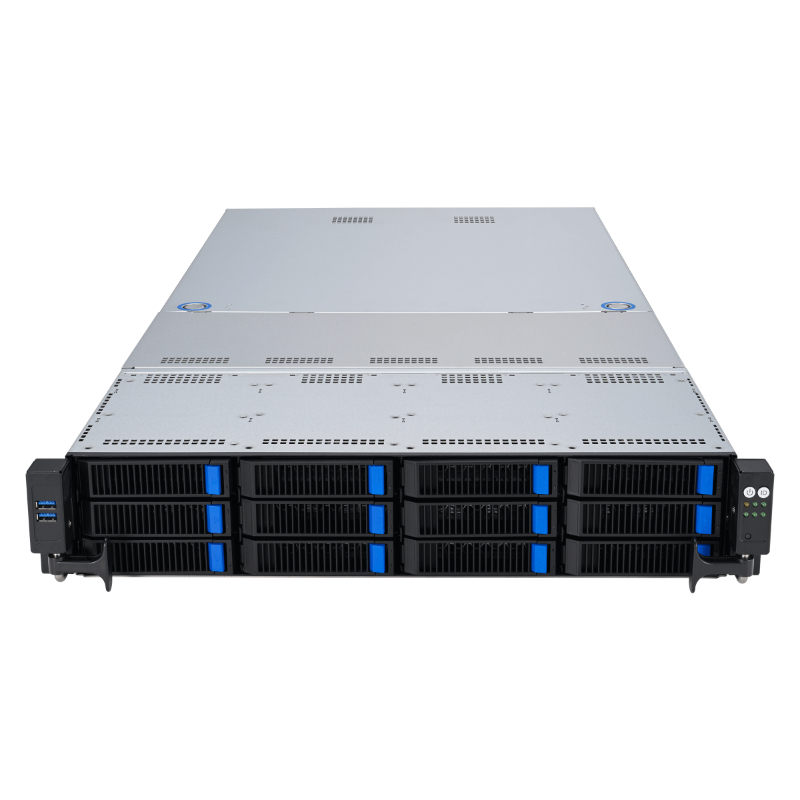

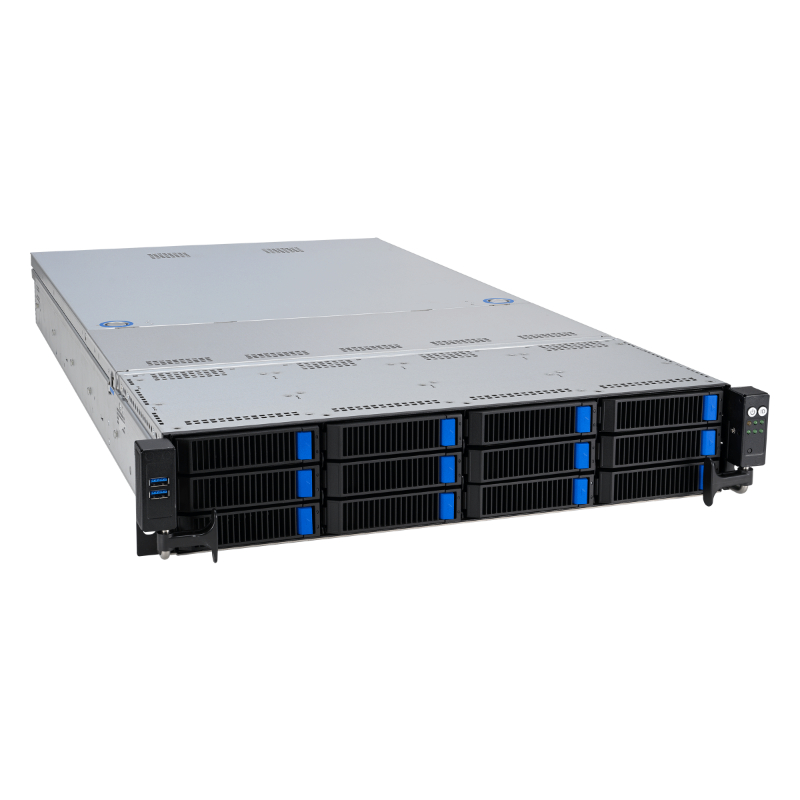

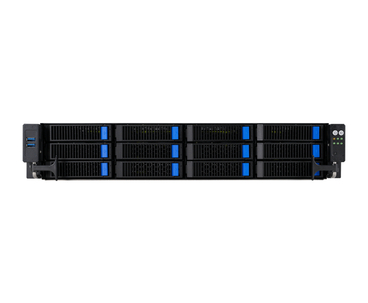

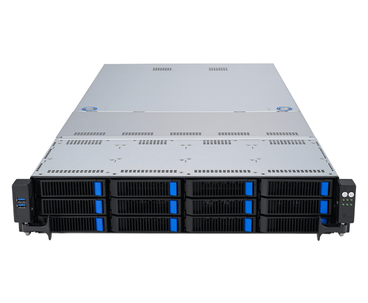

Front bays:
12 x 3.5” hot-swap drive bays
Support up to 12NVMe/SAS/SATA
Rear bays: 2 x 2.5” SATA hot-swap drive bays
*SAS support only from optional SAS HBA/RAID
card 2 x M.2 connectors
Networking
1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port
Graphic
Up to 4 single-slot or 2 double-slot GPU cards
Multi-GPU Support
Please find the latest GPU support from https://servers.asus.com/support/GPU

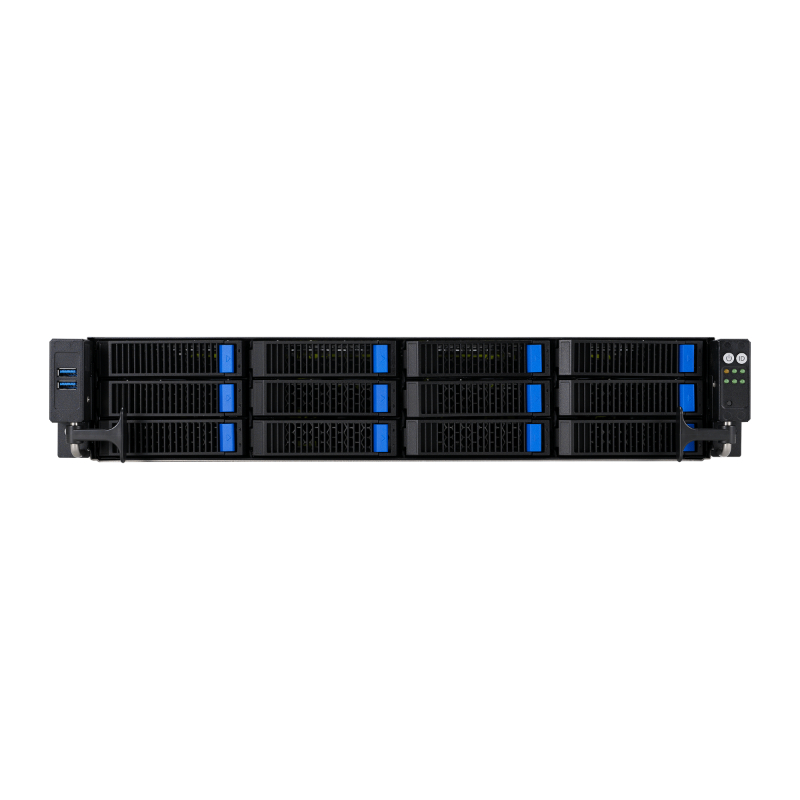

Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port

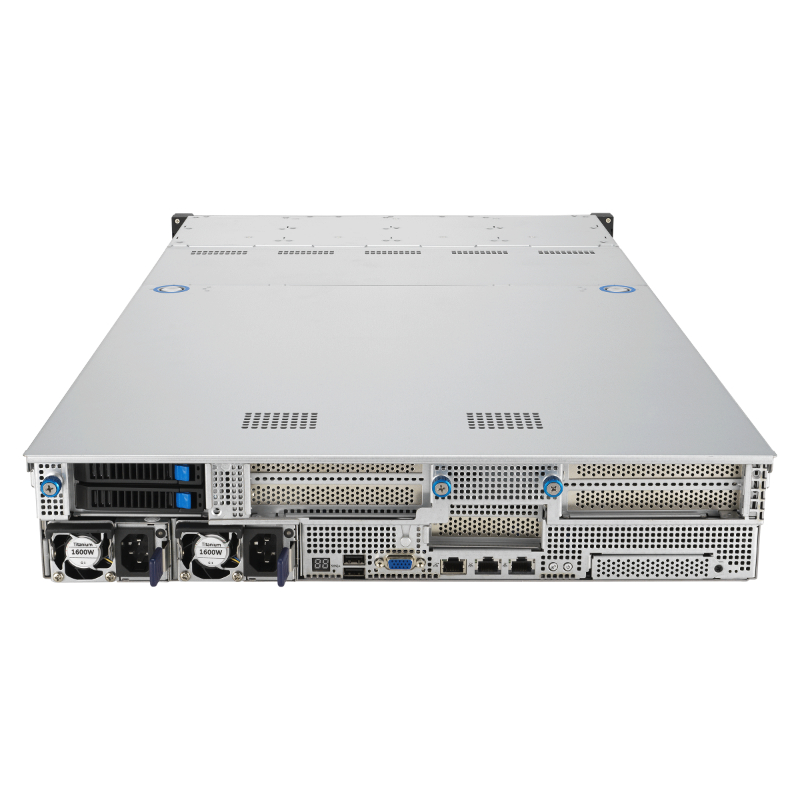

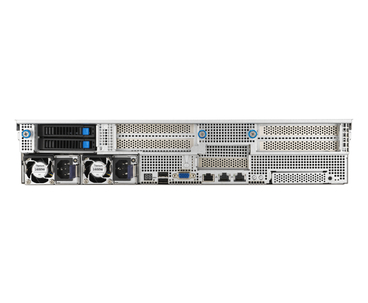

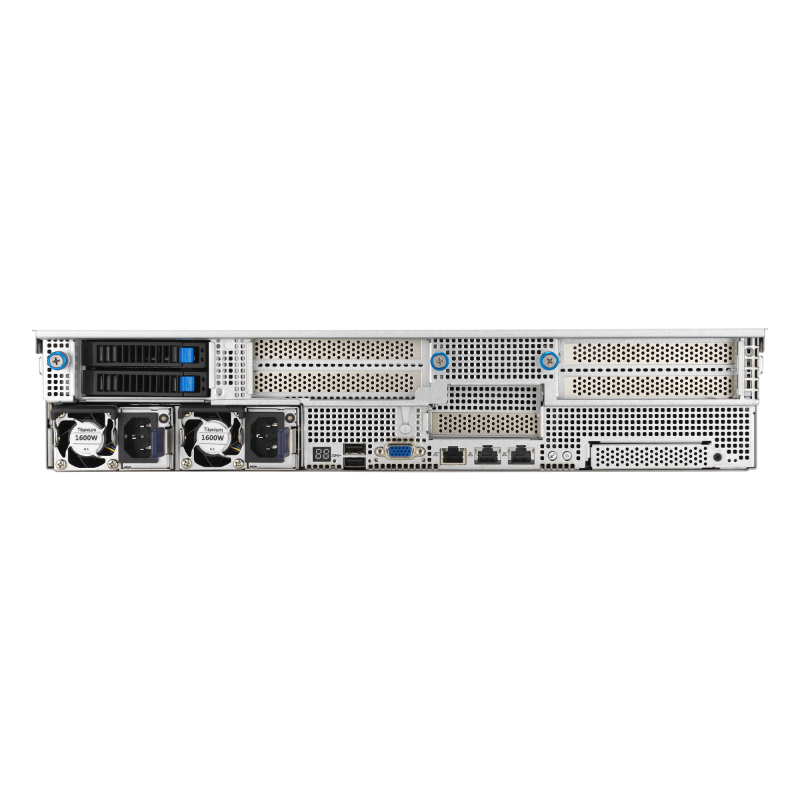

Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports
Switch/LED
Front:
1 x Power Button/LED
1 x Reset Switch
1 x Location Button/LED
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
OS Support
Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
ASUS Control Center
ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
CB, CE, RCM, FCC(Class A)
Dimensions
840mm x 449mm x 88.1mm (2U)
33.07” x 17.68” x 3.47
Form Factor
2U
Weight
(approximate)
Net Weight: 17.95 kg
Gross Weight: 25.14 kg
Environment
Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)
Note
Operating Temperature based on configurations
