Especificaciones

Processor / System Bus
    1 x Socket LGA1700
    Intel® Pentium® Processors
    Intel® Xeon® E processors

Core Logic
    Intel® C266 Chipset

Memory
    Total Slots:    4 (2-channel)
    Capacity :    Maximum up to 128GB
    Memory Type :    DDR5 4400 ECC UDIMM
    Memory Size :    128GB
    * Refer to support page for more information

Expansion Slots
    Total Slot : 4
    Slot 1 : PCI-E x8 (Gen4 X4 Link)
    Slot 2 : PCI-E x8 (Gen4 X4 Link)
    Slot 4 : PCI-E x8 (Gen5 X8 Link)
    Slot 6 : PCI-E x16 (Gen5 X16 Link),
    Auto switch to x8 link if slot 4 is occupied

Form Factor
    ATX (12"x9.6", 305mm x 244mm)

Storage
    Storage Controller :
    8 x SATA 6Gb/s ports by 4 Mini-SAS HD connectors
    2 x M.2 connector(22110,support NVMe PCIe x4 link)

Networking
   1 x Dual Port Intel X710-AT2+ 1 x Mgmt LAN

Graphic
    Aspeed AST2600 with 64MB VRAM (VGA from BMC)

On Board I/O
    1 x VGA Header (VGA from BMC)
    1 x TPM header
    1 x COM port
    6 x Fan Header , 4pin
    1 x SMBus
    1 x Chassis Intruder
    2 x Front LAN LED
    1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
    2 x M.2 Connector
    1 x Internal USB3.2 Gen2 (type-A Vertical)
    1 x USB3.2 Gen1 header,2 ports
    1 x USB2.0 header

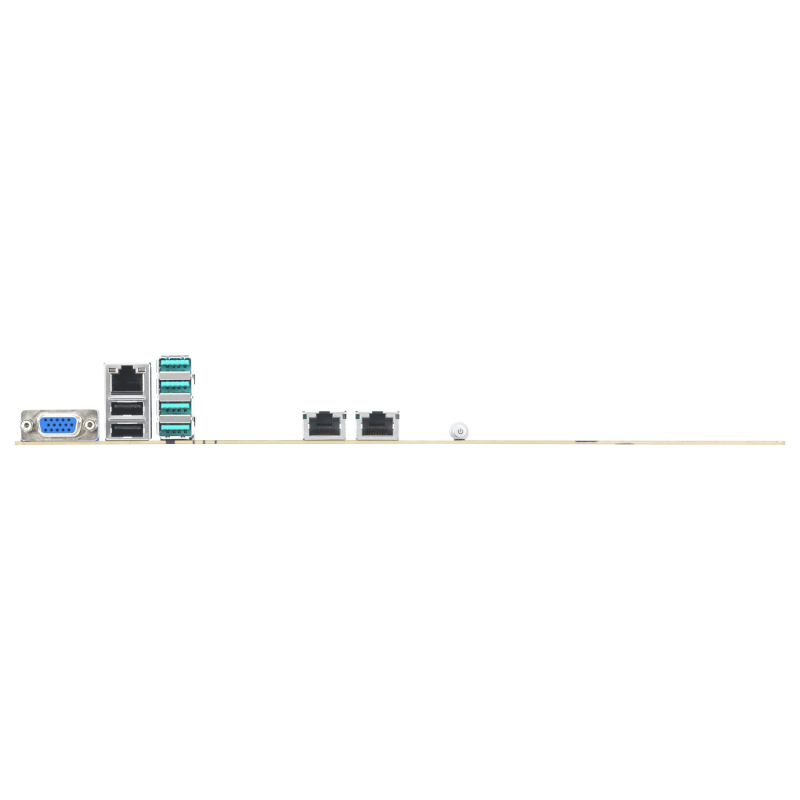

Back I/O Ports
    4 x USB 3.2 Gen2
    2 x USB 2.0
    1 x VGA port (VGA from BMC)
    2 x 1 GbE LAN + 1 x Mgmt LAN

Management Solution
    On-Board ASMB11-iKVM for KVM-over-IP

Weight
    Gift Box (1-in-1)
    Net Weight : 0.76 KG
    Gross Weight : 1.3 KG
    Bulk Pack (10-in-1)
    Net Weight : 6.9 KG
    Gross Weight : 9.5 KG

Environment
    Operation temperature: 10 ~ 50*
    Non operation temperature: -40 ~ 70
    Non operation humidity: 20% ~ 90% ( Non condensing)
    *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference.

Monitoring
    CPU Temperature
    Fan RPM
